The Earthing Relay senses the static-charge potential of the Tanker and provides a safe grounding path for this charge

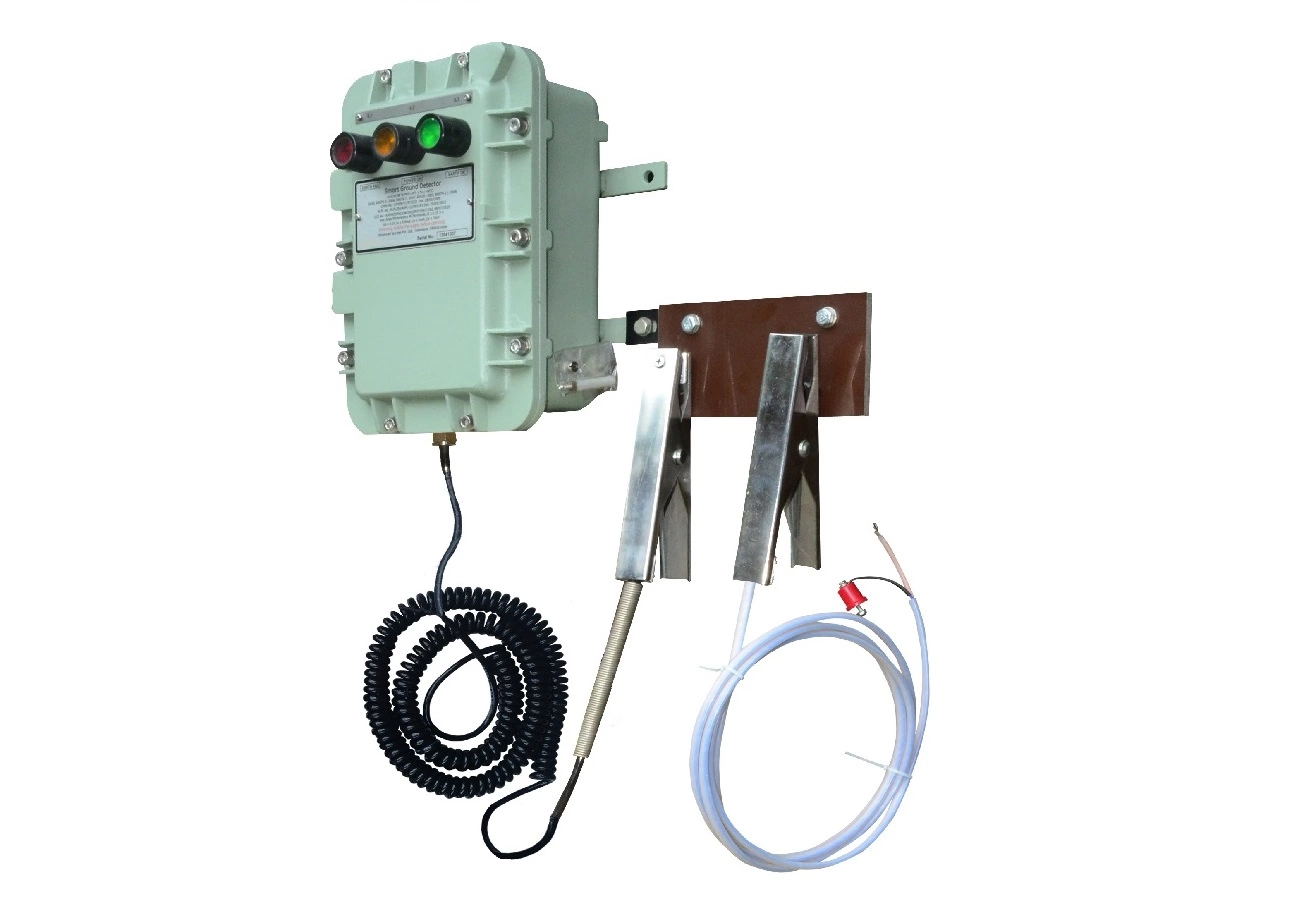

SMART GROUNDING DEVICE - SGD / SGD+®

Applications

  • Top & Bottom Loading of Road Tankers
  • Unloading application from TT/Tanker Lorry
  • Loading of Rail Wagons
  • Process Equipment Earthing
  • Movement of filled Container
  • Drum / Container filling
  • Powder filling in FIBCs & IBCs

Click to download SGD Catalogue

Click to download SGD+ Catalogue

Features

  • Resistive & Capacitive type principle
  • Single & Dual Channel Earthing Relay
  • Immediately shuts down the loading/unloading operation if proper static grounding is not detected
  • Provides four set points of resistance values and shuts of the product transfer process through its interlock output if resistance of the earth circuit is more than the set value of the resistance
  • Detects loss of static earth
  • Provides an electrical connectivity to ensure that the vehicle or tank is at the same potential as the loading rack or fill station
  • Potential free relay output for pumps, values, PLCs, alarms, Batch controller, etc
